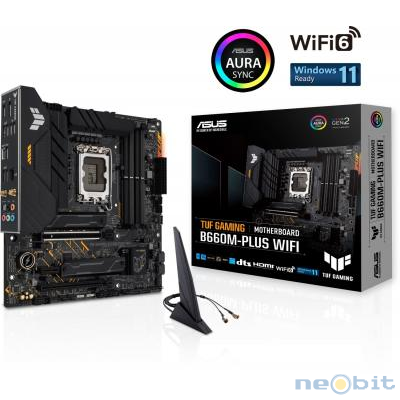

| ASUS TUF GAMING B660M-PLUS WIFI, DDR5, SATA3, USB3.2Gen2x2, DP, WiFi, LGA1700 mATX |
| Cena: 170,89 EUR z DDV |
|
|
| Dobava | 1 dan (Po naročilu, ni na zalogi v trgovini.) |
| Skupina | Komponente | Osnovne plošče |
| Tovarniška koda artikla | 90MB1AZ0-M1EAY0 * - s klikom na ta link se vam bo odprlo novo okno z Googlovim poizvedovanjem |
| Garancija | 36 mesecev |
|
|
PODNOŽJE: INTEL LGA 1700ZA PROCESORJE: 12th Gen Intel Core, Pentium Gold and Celeron ProcessorFORMAT: ATX format 24.4 cm x 24.4 cmVEZNI ČIP: INTEL B660POMNILNIK:4 x DDR5 DIMM non-ECC do 6000 MHz) do skupno 192GB kapacitete, dual channel in XMP podpora, OptiMem IIGRAFIKA: DA - preko CPURAID: DA Intel Rapid Storage Technology supports SATA RAID 0/1/5/10RAZŠIRITVENE REŽE:Intel 12th Gen Processors1 x PCIe 5.0 x16 slotIntel B660 Chipset1 x PCIe 3.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x1 slotMREŽNA KARTICA: Realtek 2.5Gb Ethernet z ASUS LANGuard ; 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) 2.4/5GHz + Bluetooth v5.2ZVOČNA KARTICA: Realtek 7.1 Surround Sound High Definition Audio CODECNOTRANJI PRIKLJUČKI:Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 connector (supports USB Type-C)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x AURA RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt headerZUNANJI PRIKLJUČKI:1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)4 x USB 3.2 Gen 2 ports (4 x Type-A)1 x USB 3.2 Gen 1 port (1 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI port1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out portDODATNO:ASUS TUF PROTECTION- DIGI+ VRM (- Digital power design with DrMOS)- Enhanced DRAM Overcurrent Protection- ESD Guards- TUF LANGuard- Overvoltage Protection- SafeSlot- Stainless-Steel Back I/OASUS Q-Design- M.2 Q-Latch- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- VRM heatsink design- M.2 heatsinks ASUS EZ DIY- CPU Socket lever protector- ProCool- Pre-mounted I/O shield- SafeDIMMAURA Sync- AURA RGB header- Addressable Gen 2 headersASUS Exclusive SoftwareArmoury Crate- AURA Creator- AURA Sync- Fan Xpert 2+- Two-Way AI Noise CancelationAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDIGI+ VRMTUF GAMING CPU-ZDTS Audio ProcessingMyASUSNorton Anti-virus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeUradna stran proizvajalca: https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b660m-plus-wifi/ |
 |
|
|
|
